サンエスコイルドウェーブスプリング（ＣＷＳ）の範囲と仕様
| 製品番号 | 材質 | 最大荷重 | 荷重高さ | 自由長 |
|---|---|---|---|---|
| WP□□□P□□□Ｎ□ | SWRS82A | 7～650N | 1.6～15.4mm | （2.4～37.4）mm |
適応範囲
ピアノ線材（JIS G3502）SWRS82Aを断面寸法（厚み×幅） 0.1×0.5 ～0.9×5.0に圧延した材料を使用した、静的使用目的のコイルドウェーブスプリングです。
※動的に使用される場合は実機での検証をお願い致します。
熱処理・表面処理
使用最高温度：100℃
表面処理はしていません

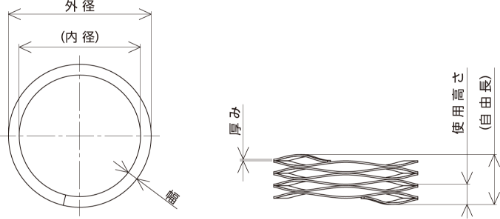

ばねの形状と寸法許容差
- 巻方向：右巻
- 外径許容差：仕様表に記載
- 自由長：参考値として許容差をつけない
- ばね定数：参考値として許容差をつけない
- 最大荷重の許容差：±15％
- 総巻数：仕様表に記載、参考値として許容差をつけない
ばねの選定方法
① ばねのスペースからコイル径を決める
② 必要な荷重より大きい最大荷重規格のばねを選ぶ
③ ばねの使用高さを決める
計算例

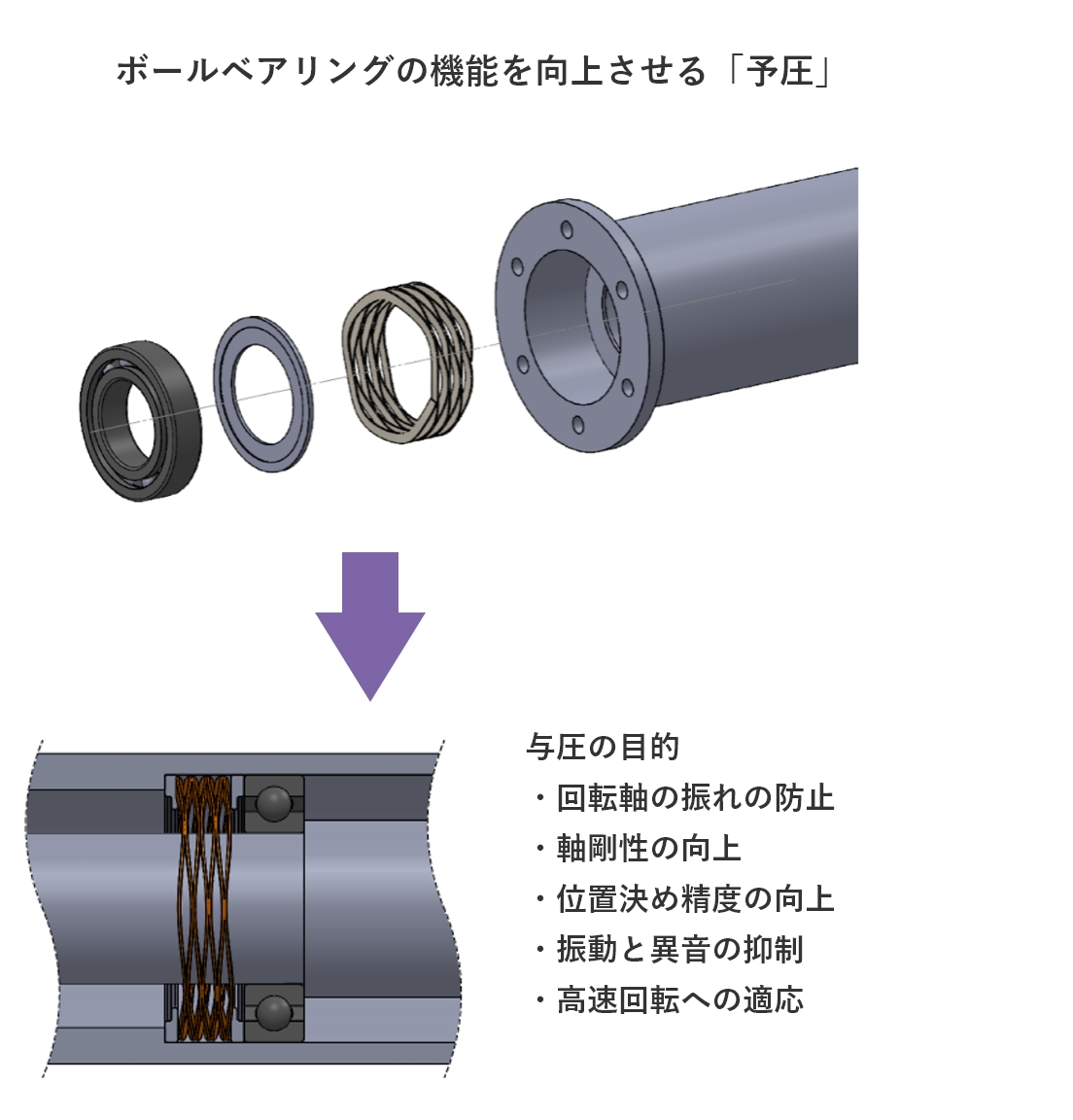

条件 穴径φ62の中にCWSを入れ、ベアリングに194Nの予圧を与えたい。
① 外径φ62以下で近い外径寸法の「WP61.2P＊＊＊N7」を選択。
② 最大荷重が必要荷重より大きい「WP61.2P240N7」を選択。
③ 最大荷重時高さ12.3mmのとき、最大荷重240N ばね定数31.5N/mmなので
最大荷重と必要な荷重の差を求める
⇒240N − 194N ＝ 46N
荷重の差をばね定数で除算し高さの差を求める
⇒46N ÷ 31.5N/mm ≒ 1.5mm
高さの差と最大荷重時高さの和より、使用高さが決まる
⇒1.5mm + 12.3mm ≒ 13.8mm
これにより194N予圧時の使用高さは13.8mmとなる。
ばねの形状と寸法許容差

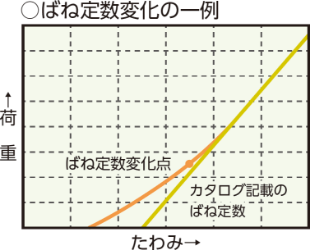

CWSは構造上、ばね定数の変化点が存在します。この変化点は山数や山の高さなどの仕様により変化点位置は異なります。
一般的に山数が少なく、山形状の高さが大きいほど初期たわみにおいて、ばね定数の小さい範囲が占める割合が大きくなります。変化点以降のばね定数が大きい値をカタログ値と掲載しております。
品番毎の3Dモデル・荷重曲線については以下表をご確認・ご活用ください
外径基準

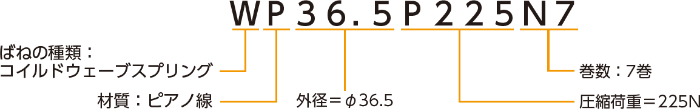

品名の表示例
| 品番 | 外径 （ｍｍ） | 公差 | 内径min (mm) | 自由長 （ｍｍ） | 巻数 | 山数 | 素線寸法 | 最大荷重 時高さ （ｍｍ） | 最大 荷重 (N) | ばね定数 （N／ｍｍ） | 荷重曲線 データ | CAD データ （3D） | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 厚み （ｍｍ） | 幅 （ｍｍ） | ||||||||||||
| WP04.7P009N9 | 4.7 | ±0.1 | (3.6) | (2.4) | 9 | 3.5 | 0.1 | 0.5 | 1.6 | 9 | (13.5) | CAD | |
| WP05.7P007N9 | 5.7 | ±0.1 | (4.6) | (3.5) | 9 | 3.5 | 0.1 | 0.5 | 2.1 | 7 | (6.8) | CAD | |
| WP07.7P016N9 | 7.7 | ±0.1 | (6.2) | (4.2) | 9 | 3.5 | 0.15 | 0.7 | 2.7 | 16 | (11.4) | CAD | |
| WP09.5P033N7 | 9.5 | ±0.15 | (7.3) | (3.9) | 7 | 3.5 | 0.2 | 1.0 | 2.5 | 33 | (31.4) | CAD | |
| WP10.5P029N7 | 10.5 | ±0.2 | (8.3) | (4.7) | 7 | 3.5 | 0.2 | 1.0 | 2.8 | 29 | (21) | CAD | |
| WP11.5P026N7 | 11.5 | ±0.2 | (9.3) | (5.4) | 7 | 3.5 | 0.2 | 1.0 | 3.1 | 26 | (15.5) | CAD | |
| WP12.5P024N7 | 12.5 | ±0.2 | (10.3) | (6.2) | 7 | 3.5 | 0.2 | 1.0 | 3.4 | 24 | (11.3) | CAD | |
| WP12.5P040N7 | 12.5 | ±0.2 | (10.3) | (4.2) | 7 | 4.5 | 0.2 | 1.0 | 2.6 | 40 | (30.3) | CAD | |
| WP14.5P042N7 | 14.5 | ±0.2 | (11.7) | (7) | 7 | 3.5 | 0.25 | 1.3 | 3.9 | 42 | (18.9) | CAD | |
| WP16.5P036N7 | 16.5 | ±0.2 | (13.7) | (8.6) | 7 | 3.5 | 0.25 | 1.3 | 4.5 | 36 | (12.4) | CAD | |
| WP16.5P060N7 | 16.5 | ±0.2 | (13.7) | (5.7) | 7 | 4.5 | 0.25 | 1.3 | 3.4 | 60 | (33) | CAD | |
| WP17.5P055N7 | 17.5 | ±0.2 | (14.3) | (6.9) | 7 | 3.5 | 0.3 | 1.5 | 4.5 | 55 | (24.7) | CAD | |
| WP18.5P052N7 | 18.5 | ±0.2 | (15.3) | (7.9) | 7 | 3.5 | 0.3 | 1.5 | 4.8 | 52 | (20.6) | CAD | |
| WP18.5P085N7 | 18.5 | ±0.2 | (15.3) | (5.5) | 7 | 4.5 | 0.3 | 1.5 | 3.8 | 85 | (58) | CAD | |
| WP19.5P049N7 | 19.5 | ±0.2 | (16.3) | (8.6) | 7 | 3.5 | 0.3 | 1.5 | 5.2 | 49 | (17.3) | CAD | |
| WP19.5P090N7 | 19.5 | ±0.2 | (16.3) | (5.9) | 7 | 4.5 | 0.3 | 1.5 | 3.8 | 90 | (47.6) | CAD | |
| WP21.5P100N7 | 21.5 | ±0.2 | (17.3) | (8.9) | 7 | 3.5 | 0.4 | 2.0 | 5.6 | 100 | (41.1) | CAD | |
| WP23.5P095N7 | 23.5 | ±0.2 | (19.3) | (9.7) | 7 | 3.5 | 0.4 | 2.0 | 6.0 | 95 | (28.8) | CAD | |
| WP25.5P095N7 | 25.5 | ±0.2 | (20.9) | (11.6) | 7 | 3.5 | 0.4 | 2.2 | 6.6 | 95 | (25.4) | CAD | |
| WP27.5P085N7 | 27.5 | ±0.2 | (22.9) | (12.3) | 7 | 3.5 | 0.4 | 2.2 | 6.6 | 85 | (20.1) | CAD | |
| WP29.5P080N7 | 29.5 | ±0.2 | (24.9) | (13.9) | 7 | 3.5 | 0.4 | 2.2 | 7.2 | 80 | (15.7) | CAD | |
| WP29.5P135N7 | 29.5 | ±0.2 | (24.9) | (9.9) | 7 | 4.5 | 0.4 | 2.2 | 6.0 | 135 | (42) | CAD | |
| WP31.5P085N7 | 31.5 | ±0.2 | (26.3) | (15) | 7 | 3.5 | 0.4 | 2.5 | 7.6 | 85.0 | (15) | CAD | |
| WP31.5P140N7 | 31.5 | ±0.2 | (26.3) | (9.1) | 7 | 4.5 | 0.4 | 2.5 | 5.2 | 140 | (44) | CAD | |
| WP34.5P145N7 | 34.5 | ±0.2 | (28.3) | (12.4) | 7 | 3.5 | 0.5 | 3.0 | 7.0 | 145 | (30.4) | CAD | |
| WP36.5P135N7 | 36.5 | ±0.2 | (30.3) | (13.5) | 7 | 3.5 | 0.5 | 3.0 | 7.5 | 135 | (24.7) | CAD | |
| WP36.5P225N7 | 36.5 | ±0.2 | (30.3) | (10.6) | 7 | 4.5 | 0.5 | 3.0 | 7.0 | 225 | (68.9) | CAD | |
| WP39.5P125N7 | 39.5 | ±0.25 | (33.2) | (15.9) | 7 | 3.5 | 0.5 | 3.0 | 8.2 | 125 | (19.1) | CAD | |
| WP39.5P205N7 | 39.5 | ±0.25 | (33.2) | (12.1) | 7 | 4.5 | 0.5 | 3.0 | 7.7 | 205 | (52.8) | CAD | |
| WP41.5P115N7 | 41.5 | ±0.25 | (35.2) | (17.3) | 7 | 3.5 | 0.5 | 3.0 | 8.9 | 115 | (16.1) | CAD | |
| WP41.5P195N7 | 41.5 | ±0.25 | (35.2) | (13.6) | 7 | 4.5 | 0.5 | 3.0 | 8.2 | 195 | (46.8) | CAD | |
| WP46.3P120N7 | 46.3 | ±0.3 | (39) | (21.1) | 7 | 3.5 | 0.5 | 3.5 | 9.8 | 120 | (15.2) | CAD | |
| WP46.3P200N7 | 46.3 | ±0.3 | (39) | (15.5) | 7 | 4.5 | 0.5 | 3.5 | 9.0 | 200 | (41.7) | CAD | |
| WP46.3P260N7 | 46.3 | ±0.3 | (40) | (12.2) | 7 | 5.5 | 0.5 | 3.0 | 7.5 | 260 | (71.4) | CAD | |
| WP51.3P175N7 | 51.3 | ±0.3 | (43) | (22) | 7 | 3.5 | 0.6 | 4.0 | 10.4 | 175 | (22.1) | CAD | |
| WP51.3P290N7 | 51.3 | ±0.3 | (43) | (15.6) | 7 | 4.5 | 0.6 | 4.0 | 9.7 | 290 | (59.2) | CAD | |
| WP54.3P165N7 | 54.3 | ±0.3 | (46) | (24.9) | 7 | 3.5 | 0.6 | 4.0 | 11.2 | 165 | (18.8) | CAD | |
| WP54.3P270N7 | 54.3 | ±0.3 | (46) | (18) | 7 | 4.5 | 0.6 | 4.0 | 10.5 | 270 | (48.6) | CAD | |
| WP61.2P145N7 | 61.2 | ±0.3 | (52.9) | (29.7) | 7 | 3.5 | 0.6 | 4.0 | 13.4 | 145 | (11.1) | CAD | |
| WP61.2P240N7 | 61.2 | ±0.3 | (52.9) | (22.6) | 7 | 4.5 | 0.6 | 4.0 | 12.3 | 240 | (31.5) | CAD | |
| WP61.2P360N7 | 61.2 | ±0.3 | (52.9) | (16.9) | 7 | 5.5 | 0.6 | 4.0 | 9.6 | 360 | (68.1) | CAD | |
| WP61.2P395N7 | 61.2 | ±0.3 | (50.9) | (27.3) | 7 | 3.5 | 0.9 | 5.0 | 14.5 | 395 | (47) | CAD | |
| WP61.2P650N7 | 61.2 | ±0.3 | (50.9) | (18) | 7 | 4.5 | 0.9 | 5.0 | 11.3 | 650 | (134.2) | CAD | |
| WP67.2P215N7 | 67.2 | ±0.3 | (56.9) | (31.2) | 7 | 3.5 | 0.7 | 5.0 | 13.5 | 215 | (16.6) | CAD | |
| WP67.2P360N7 | 67.2 | ±0.3 | (56.9) | (23.1) | 7 | 4.5 | 0.7 | 5.0 | 12.6 | 360 | (46.4) | CAD | |
| WP67.2P590N7 | 67.2 | ±0.3 | (56.9) | (20.6) | 7 | 4.5 | 0.9 | 5.0 | 12.4 | 590 | (102.2) | CAD | |
| WP71.1P200N7 | 71.1 | ±0.4 | (60.7) | (36) | 7 | 3.5 | 0.7 | 5.0 | 15.0 | 200 | (13.8) | CAD | |
| WP71.1P330N7 | 71.1 | ±0.4 | (60.7) | (25.6) | 7 | 4.5 | 0.7 | 5.0 | 13.8 | 330 | (37.2) | CAD | |
| WP71.1P550N7 | 71.1 | ±0.4 | (60.7) | (21) | 7 | 4.5 | 0.9 | 5.0 | 13.3 | 550 | (81.3) | CAD | |
| WP74.0P195N7 | 74 | ±0.4 | (63.6) | (37.4) | 7 | 3.5 | 0.7 | 5.0 | 15.4 | 195 | (12) | CAD | |
| WP74.0P320N7 | 74 | ±0.4 | (63.6) | (27.7) | 7 | 4.5 | 0.7 | 5.0 | 14.6 | 320 | (32.4) | CAD | |
| WP74.0P530N7 | 74 | ±0.4 | (63.6) | (22.4) | 7 | 4.5 | 0.9 | 5.0 | 13.8 | 530 | (72.8) | CAD | |
荷重基準
品名の表示例
| 品番 | 最大 荷重 (N) | 最大荷重 時高さ （ｍｍ） | 外径 （ｍｍ） | 公差 | 内径min (mm) | 自由長 （ｍｍ） | 巻数 | 山数 | 素線寸法 | ばね定数 （N／ｍｍ） | PDF データ | CAD データ （3D） | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 厚み （ｍｍ） | 幅 （ｍｍ） | ||||||||||||
| WP05.7P007N9 | 7 | 2.1 | 5.7 | ±0.1 | (4.6) | (3.5) | 9 | 3.5 | 0.1 | 0.5 | (6.8) | CAD | |
| WP04.7P009N9 | 9 | 1.6 | 4.7 | ±0.1 | (3.6) | (2.4) | 9 | 3.5 | 0.1 | 0.5 | (13.5) | CAD | |
| WP07.7P016N9 | 16 | 2.7 | 7.7 | ±0.1 | (6.2) | (4.2) | 9 | 3.5 | 0.15 | 0.7 | (11.4) | CAD | |
| WP12.5P024N7 | 24 | 3.4 | 12.5 | ±0.2 | (10.3) | (6.2) | 7 | 3.5 | 0.2 | 1.0 | (11.3) | CAD | |
| WP11.5P026N7 | 26 | 3.1 | 11.5 | ±0.2 | (9.3) | (5.4) | 7 | 3.5 | 0.2 | 1.0 | (15.5) | CAD | |
| WP10.5P029N7 | 29 | 2.8 | 10.5 | ±0.2 | (8.3) | (4.7) | 7 | 3.5 | 0.2 | 1.0 | (21) | CAD | |
| WP09.5P033N7 | 33 | 2.5 | 9.5 | ±0.15 | (7.3) | (3.9) | 7 | 3.5 | 0.2 | 1.0 | (31.4) | CAD | |
| WP16.5P036N7 | 36 | 4.5 | 16.5 | ±0.2 | (13.7) | (8.6) | 7 | 3.5 | 0.25 | 1.3 | (12.4) | CAD | |
| WP12.5P040N7 | 40 | 2.6 | 12.5 | ±0.2 | (10.3) | (4.2) | 7 | 4.5 | 0.2 | 1.0 | (30.3) | CAD | |
| WP14.5P042N7 | 42 | 3.9 | 14.5 | ±0.2 | (11.7) | (7) | 7 | 3.5 | 0.25 | 1.3 | (18.9) | CAD | |
| WP19.5P049N7 | 49 | 5.2 | 19.5 | ±0.2 | (16.3) | (8.6) | 7 | 3.5 | 0.3 | 1.5 | (17.3) | CAD | |
| WP18.5P052N7 | 52 | 4.8 | 18.5 | ±0.2 | (15.3) | (7.9) | 7 | 3.5 | 0.3 | 1.5 | (20.6) | CAD | |
| WP17.5P055N7 | 55 | 4.5 | 17.5 | ±0.2 | (14.3) | (6.9) | 7 | 3.5 | 0.3 | 1.5 | (24.7) | CAD | |
| WP16.5P060N7 | 60 | 3.4 | 16.5 | ±0.2 | (13.7) | (5.7) | 7 | 4.5 | 0.25 | 1.3 | (33) | CAD | |
| WP29.5P080N7 | 80 | 7.2 | 29.5 | ±0.2 | (24.9) | (13.9) | 7 | 3.5 | 0.4 | 2.2 | (15.7) | CAD | |
| WP18.5P085N7 | 85 | 3.8 | 18.5 | ±0.2 | (15.3) | (5.5) | 7 | 4.5 | 0.3 | 1.5 | (58) | CAD | |
| WP27.5P085N7 | 85 | 6.6 | 27.5 | ±0.2 | (22.9) | (12.3) | 7 | 3.5 | 0.4 | 2.2 | (20.1) | CAD | |
| WP31.5P085N7 | 85 | 7.6 | 31.5 | ±0.2 | (26.3) | (15) | 7 | 3.5 | 0.4 | 2.5 | (15) | CAD | |
| WP19.5P090N7 | 90 | 3.8 | 19.5 | ±0.2 | (16.3) | (5.9) | 7 | 4.5 | 0.3 | 1.5 | (47.6) | CAD | |
| WP23.5P095N7 | 95 | 6.0 | 23.5 | ±0.2 | (19.3) | (9.7) | 7 | 3.5 | 0.4 | 2.0 | (28.8) | CAD | |
| WP25.5P095N7 | 95 | 6.6 | 25.5 | ±0.2 | (20.9) | (11.6) | 7 | 3.5 | 0.4 | 2.2 | (25.4) | CAD | |
| WP21.5P100N7 | 100 | 5.6 | 21.5 | ±0.2 | (17.3) | (8.9) | 7 | 3.5 | 0.4 | 2.0 | (41.1) | CAD | |
| WP41.5P115N7 | 115 | 8.9 | 41.5 | ±0.25 | (35.2) | (17.3) | 7 | 3.5 | 0.5 | 3.0 | (16.1) | CAD | |
| WP46.3P120N7 | 120 | 9.8 | 46.3 | ±0.3 | (39) | (21.1) | 7 | 3.5 | 0.5 | 3.5 | (15.2) | CAD | |
| WP39.5P125N7 | 125 | 8.2 | 39.5 | ±0.25 | (33.2) | (15.9) | 7 | 3.5 | 0.5 | 3.0 | (19.1) | CAD | |
| WP29.5P135N7 | 135 | 6.0 | 29.5 | ±0.2 | (24.9) | (9.9) | 7 | 4.5 | 0.4 | 2.2 | (42) | CAD | |
| WP36.5P135N7 | 135 | 7.5 | 36.5 | ±0.2 | (30.3) | (13.5) | 7 | 3.5 | 0.5 | 3.0 | (24.7) | CAD | |
| WP31.5P140N7 | 140 | 5.2 | 31.5 | ±0.2 | (26.3) | (9.1) | 7 | 4.5 | 0.4 | 2.5 | (44) | CAD | |
| WP34.5P145N7 | 145 | 7.0 | 34.5 | ±0.2 | (28.3) | (12.4) | 7 | 3.5 | 0.5 | 3.0 | (30.4) | CAD | |
| WP61.2P145N7 | 145 | 13.4 | 61.2 | ±0.3 | (52.9) | (29.7) | 7 | 3.5 | 0.6 | 4.0 | (11.1) | CAD | |
| WP54.3P165N7 | 165 | 11.2 | 54.3 | ±0.3 | (46) | (24.9) | 7 | 3.5 | 0.6 | 4.0 | (18.8) | CAD | |
| WP51.3P175N7 | 175 | 10.4 | 51.3 | ±0.3 | (43) | (22) | 7 | 3.5 | 0.6 | 4.0 | (22.1) | CAD | |
| WP41.5P195N7 | 195 | 8.2 | 41.5 | ±0.25 | (35.2) | (13.6) | 7 | 4.5 | 0.5 | 3.0 | (46.8) | CAD | |
| WP74.0P195N7 | 195 | 15.4 | 74 | ±0.4 | (63.6) | (37.4) | 7 | 3.5 | 0.7 | 5.0 | (12) | CAD | |
| WP46.3P200N7 | 200 | 9.0 | 46.3 | ±0.3 | (39) | (15.5) | 7 | 4.5 | 0.5 | 3.5 | (41.7) | CAD | |
| WP71.1P200N7 | 200 | 15.0 | 71.1 | ±0.4 | (60.7) | (36) | 7 | 3.5 | 0.7 | 5.0 | (13.8) | CAD | |
| WP39.5P205N7 | 205 | 7.7 | 39.5 | ±0.25 | (33.2) | (12.1) | 7 | 4.5 | 0.5 | 3.0 | (52.8) | CAD | |
| WP67.2P215N7 | 215 | 13.5 | 67.2 | ±0.3 | (56.9) | (31.2) | 7 | 3.5 | 0.7 | 5.0 | (16.6) | CAD | |
| WP36.5P225N7 | 225 | 7.0 | 36.5 | ±0.2 | (30.3) | (10.6) | 7 | 4.5 | 0.5 | 3.0 | (68.9) | CAD | |
| WP61.2P240N7 | 240 | 12.3 | 61.2 | ±0.3 | (52.9) | (22.6) | 7 | 4.5 | 0.6 | 4.0 | (31.5) | CAD | |
| WP46.3P260N7 | 260 | 7.5 | 46.3 | ±0.3 | (40) | (12.2) | 7 | 5.5 | 0.5 | 3.0 | (71.4) | CAD | |
| WP54.3P270N7 | 270 | 10.5 | 54.3 | ±0.3 | (46) | (18) | 7 | 4.5 | 0.6 | 4.0 | (48.6) | CAD | |
| WP51.3P290N7 | 290 | 9.7 | 51.3 | ±0.3 | (43) | (15.6) | 7 | 4.5 | 0.6 | 4.0 | (59.2) | CAD | |
| WP74.0P320N7 | 320 | 14.6 | 74 | ±0.4 | (63.6) | (27.7) | 7 | 4.5 | 0.7 | 5.0 | (32.4) | CAD | |
| WP71.1P330N7 | 330 | 13.8 | 71.1 | ±0.4 | (60.7) | (25.6) | 7 | 4.5 | 0.7 | 5.0 | (37.2) | CAD | |
| WP61.2P360N7 | 360 | 9.6 | 61.2 | ±0.3 | (52.9) | (16.9) | 7 | 5.5 | 0.6 | 4.0 | (68.1) | CAD | |
| WP67.2P360N7 | 360 | 12.6 | 67.2 | ±0.3 | (56.9) | (23.1) | 7 | 4.5 | 0.7 | 5.0 | (46.4) | CAD | |
| WP61.2P395N7 | 395 | 14.5 | 61.2 | ±0.3 | (50.9) | (27.3) | 7 | 3.5 | 0.9 | 5.0 | (47) | CAD | |
| WP74.0P530N7 | 530 | 13.8 | 74 | ±0.4 | (63.6) | (22.4) | 7 | 4.5 | 0.9 | 5.0 | (72.8) | CAD | |
| WP71.1P550N7 | 550 | 13.3 | 71.1 | ±0.4 | (60.7) | (21) | 7 | 4.5 | 0.9 | 5.0 | (81.3) | CAD | |
| WP67.2P590N7 | 590 | 12.4 | 67.2 | ±0.3 | (56.9) | (20.6) | 7 | 4.5 | 0.9 | 5.0 | (102.2) | CAD | |
| WP61.2P650N7 | 650 | 11.3 | 61.2 | ±0.3 | (50.9) | (18) | 7 | 4.5 | 0.9 | 5.0 | (134.2) | CAD | |
